2026-08-22Direct answer: A Drift window should be specified only after its actual panel movement, support method, tracks, seals, locks, screens, drainage, and verified ratings are defined. “Drift window” and “sliding-swing window” are not enough by themselves to identify a standard U.S. performance class. Compare the exact system with conventional casement and sliding arrangements by use, clear opening, ventilation, cleaning, weather exposure, and documentation before ordering.
Key Takeaways
- Translate a product name into a dimensioned operating diagram.
- Compare usable opening, ventilation path, panel parking, screens, locks, drainage, and cleaning access.
- Do not transfer ratings between different operating types or configurations.
- Confirm who supports, installs, adjusts, and services the exact hardware system.
- Approve representative drawings and documentation before relying on visual impressions.
Contents
- Define the system before comparing it
- Compare operating styles
- Review ratings and documentation
- Prepare an operating brief
- Frequently asked questions
Define the Drift window Before Comparing Options
Begin with a plan, elevation, and short operating sequence. Number each panel and show where it starts, how it moves, where it stops, how it locks, and whether it parks behind another panel. Identify whether panel weight is carried at the sill, the head, or another component, and show the associated support and adjustment access.
Forge Windows’ Drift window buyer checklist explains why the term must be translated into drawings and verified data. The track and panel configuration guide adds planning questions for clear opening, screens, drainage, and service. These internal resources help structure a request but do not replace the exact product submittal.
Drift window, Sliding-Swing Window, and Casement Comparison
A sliding-swing window may suggest a system that combines more than one movement, but the name does not state the panel sequence or support method. Ask the supplier to demonstrate every operating position and identify any limits on panel size, sequence, access, or adjustment. If a movement depends on specialized carriers or locks, the maintenance and replacement-parts plan should be documented.
| Decision point | Sliding or drifting arrangement | Side-hinged casement arrangement |
|---|---|---|
| Panel movement | Moves along one or more tracks; exact sequence varies | Rotates on side hinges; direction and projection matter |
| Clear opening | Depends on panel overlap and parking location | Depends on sash angle, frame size, and hardware limits |
| Exterior clearance | Often limited, but configuration must be drawn | May require space for outward sash travel |
| Screens | Must coordinate with tracks, handles, and panel sequence | Must coordinate with inward or outward operation |
| Cleaning | Panel faces and track access must be planned | Access depends on handing, opening angle, and location |
| Documentation | Use the record for the exact track-and-panel system | Use the record for the exact casement configuration |
Use a Casement Window vs Sliding Window Comparison Carefully
A casement window vs sliding window comparison can clarify broad operating tradeoffs, but it should not be used to predict a particular product’s tested performance. Frame construction, glass, seals, size, hardware, panel count, and installation can change the result. Compare verified records and project details instead of relying on statements that one style always seals, ventilates, or performs better.
The Forge Windows sliding window category and 128 Series floating sliding window listing can help identify system-specific questions. Confirm which published details apply to the quoted configuration. Do not infer availability, testing, or certification beyond the current supporting documents.
Verify the Exact Window Rating Record
The National Fenestration Rating Council Certified Products Directory is a source for checking certified fenestration records. NFRC’s windows, doors, and skylights FAQ provides background on its ratings and labels. Both official pages were accessed August 17, 2026.
For a residential energy review, the ENERGY STAR windows, doors, and skylights page explains program-level product guidance. It was accessed August 17, 2026. Match any ENERGY STAR or NFRC information to the exact manufacturer, series, operator type, panel arrangement, glazing, spacer, size, and option set rather than a similar family name.
Because moving-panel systems can vary, ask which configuration was rated and what changes require a new review. Panel count, glass, screens, hardware, and size should remain consistent across the quotation, shop drawings, labels, installation documents, and final handover. If the record does not match, list the discrepancy instead of treating it as a minor paperwork issue.
Operating Brief for a Drift window
- Number every panel and draw closed, ventilation, full-open, and cleaning positions.
- State the required usable opening and where moving panels may park.

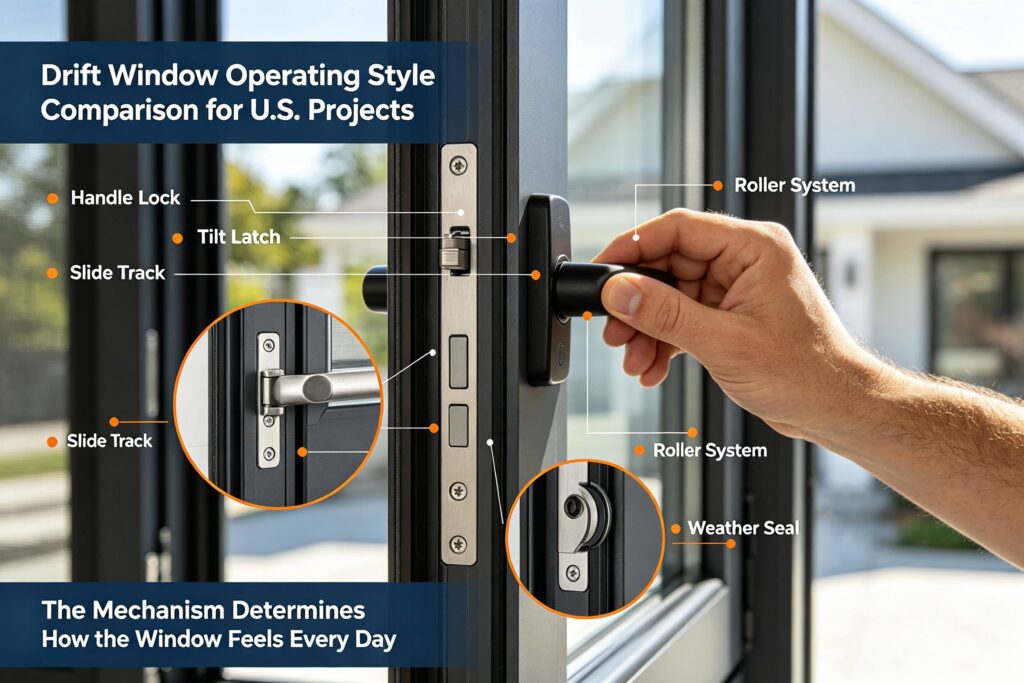

- Identify head, sill, jamb, track, carrier, guide, stop, handle, and lock components.
- Show insect screens, shades, guards, countertops, furniture, and exterior obstructions.
- Map sill drainage, perimeter flashing, sealant joints, and maintenance access.
- Request the certified record for the exact configuration and compare it with the drawings.
- Define installation, adjustment, owner training, spare parts, and service responsibilities.
Include photographs and field measurements for replacement projects, but do not use images as a substitute for dimensions. Note wall depth, finishes, sill height, head and jamb conditions, interior trim, exterior cladding, and any concealed work that must be inspected before installation.
Plan Daily Use and Long-Term Service
The preferred operating style should fit the people who will use it. Consider reach range, handle force, frequent ventilation positions, child safety strategy, insect pressure, cleaning access, and how occupants will recognize a fully locked position. Code, accessibility, fall-protection, and emergency-opening questions must be reviewed by qualified project professionals for the actual location.
Service planning matters when a system uses specialized hardware. Ask which adjustments are part of normal maintenance, which require trained service, and how a replacement component is identified. Record model names and drawings at handover so future service does not depend on guessing from appearance.
Frequently Asked Questions
Is Drift window a standard U.S. window type?
The phrase does not by itself identify a standard U.S. rating class or operating method. Treat it as a product or search term until the exact tracks, panel movements, supports, seals, locks, drainage, and documentation are defined. Use drawings and certified records to compare systems.
What is a sliding-swing window?
The phrase can describe a window that combines sliding and swinging movement, but different products may use different sequences and hardware. Ask for a live demonstration or clear operating diagram. Confirm panel support, stops, locking positions, screens, clearances, adjustment, and service access.
Can I compare a Drift window with a casement window?
Yes, if the comparison separates operating preferences from verified performance. Compare usable opening, ventilation, projection, panel parking, screens, cleaning, locks, drainage, ratings, installation, and maintenance. Use records for the exact products rather than general claims about either style.
Which documents should be approved before ordering?
Approve an opening schedule, dimensioned plan and elevation, operating sequence, glass and finish schedule, hardware list, screen details, drainage and installation details, applicable ratings, and a responsibility list. Keep unresolved items visible until the supplier and project team confirm them.
Conclusion: Specify the Drift window as a Complete System
A Drift window decision becomes useful only when the movement, support, clear opening, screens, locks, drainage, ratings, installation, and service plan are documented together. Use sliding-swing window and casement window vs sliding window searches to gather questions, not to assume results. Review current Forge Windows information and send Forge Windows a dimensioned operating brief for configuration-specific discussion.
